1. Closed Loop control, constant torque output
2. Input voltage range: 110/220VAC
3. Photoelectric isolation of input and output signals
4. Electrical stop to ensure the quickly action of motor
5. Install protection, fast response, high control accuary
6. start with strong torque, do not slow down while loading, power compesation,
7. Over load radio larger then 2times, torque always can achieve the max in low speed
8. Provide over-voltage protection, lost-voltage protection, over-current protection, over-temperature protection, illegal hall signal and other fault alarm
9. CE certification
Function
1. Three speed adjustment mathods Analog voltage speed adjustment , external digital signal speed adjustment and communication order controlling adjustment
2. Motor operate/stop control (EN) by terminal
3. Motor rotation direction control ( F/R ) by terminal
4. Break the motor to stop ( BK )
5. Speed signal output (PG)
6. Alarm output (ALM)
Parameter

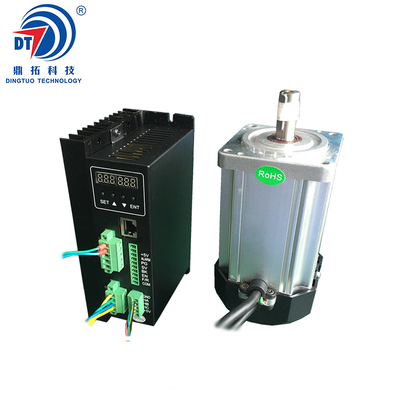

DBLS-07-S high voltage with CE brushless dc motor driver
Dimension
Connection Diagram of motor and driver
Protection type
When the motor is running abnormally, the digital tube will display:
(1) Err1: stall
(2) Err2: over current
(3) Err3: hall fault
(4) Err4: input lost- voltage
(5) Err5: input over-voltage
Communication
RS-485 communication can be carried out by using the RJ45 cable connector
The RJ45 connector pins are defined as follows:
